1. Product Basics and Microstructural Qualities of Alumina Ceramics
1.1 Structure, Pureness Qualities, and Crystallographic Properties

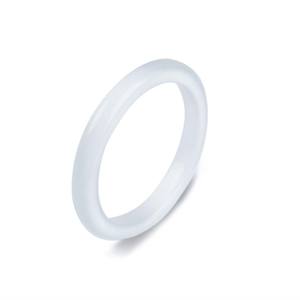

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O TWO), or aluminum oxide, is one of the most widely utilized technical porcelains in commercial design because of its superb equilibrium of mechanical stamina, chemical stability, and cost-effectiveness.
When crafted into wear linings, alumina ceramics are typically fabricated with purity degrees ranging from 85% to 99.9%, with higher pureness corresponding to boosted hardness, wear resistance, and thermal performance.
The leading crystalline stage is alpha-alumina, which adopts a hexagonal close-packed (HCP) framework identified by solid ionic and covalent bonding, adding to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose size and distribution are managed during sintering to optimize mechanical residential or commercial properties.
Grain sizes commonly range from submicron to a number of micrometers, with better grains usually enhancing crack toughness and resistance to crack proliferation under unpleasant filling.
Small ingredients such as magnesium oxide (MgO) are frequently presented in trace total up to inhibit uncommon grain development throughout high-temperature sintering, guaranteeing uniform microstructure and dimensional security.
The resulting material exhibits a Vickers firmness of 1500– 2000 HV, significantly going beyond that of hardened steel (usually 600– 800 HV), making it extremely resistant to surface area destruction in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear linings are chosen mostly for their outstanding resistance to rough, erosive, and gliding wear mechanisms widespread wholesale product taking care of systems.
They possess high compressive stamina (up to 3000 MPa), good flexural stamina (300– 500 MPa), and outstanding rigidity (Young’s modulus of ~ 380 Grade point average), enabling them to stand up to extreme mechanical loading without plastic deformation.
Although inherently fragile contrasted to metals, their low coefficient of rubbing and high surface area solidity lessen bit adhesion and reduce wear rates by orders of magnitude about steel or polymer-based alternatives.
Thermally, alumina maintains structural stability up to 1600 ° C in oxidizing environments, allowing usage in high-temperature handling atmospheres such as kiln feed systems, central heating boiler ducting, and pyroprocessing devices.

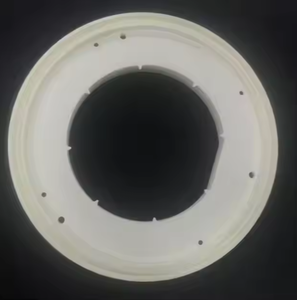

( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional stability throughout thermal cycling, lowering the danger of fracturing as a result of thermal shock when properly mounted.
In addition, alumina is electrically protecting and chemically inert to a lot of acids, alkalis, and solvents, making it suitable for destructive atmospheres where metal liners would certainly deteriorate quickly.
These combined residential properties make alumina porcelains perfect for safeguarding critical infrastructure in mining, power generation, concrete manufacturing, and chemical processing industries.
2. Manufacturing Processes and Layout Combination Techniques
2.1 Forming, Sintering, and Quality Control Protocols
The production of alumina ceramic wear liners entails a series of precision production steps made to accomplish high thickness, marginal porosity, and regular mechanical performance.
Raw alumina powders are refined via milling, granulation, and creating strategies such as completely dry pressing, isostatic pushing, or extrusion, depending upon the preferred geometry– floor tiles, plates, pipes, or custom-shaped segments.
Eco-friendly bodies are after that sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and achieving relative densities exceeding 95%, typically coming close to 99% of theoretical thickness.
Complete densification is important, as residual porosity acts as stress concentrators and increases wear and crack under service problems.
Post-sintering procedures may consist of diamond grinding or lapping to attain tight dimensional tolerances and smooth surface area coatings that minimize friction and fragment trapping.
Each set undergoes rigorous quality control, including X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural examination, and firmness and bend testing to confirm compliance with worldwide requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Factors To Consider
Effective assimilation of alumina wear liners right into commercial tools needs mindful attention to mechanical accessory and thermal growth compatibility.
Typical installation techniques consist of glue bonding using high-strength ceramic epoxies, mechanical attaching with studs or anchors, and embedding within castable refractory matrices.
Adhesive bonding is extensively utilized for flat or delicately curved surface areas, offering consistent stress and anxiety distribution and vibration damping, while stud-mounted systems permit simple replacement and are liked in high-impact zones.
To suit differential thermal development between alumina and metallic substrates (e.g., carbon steel), crafted spaces, versatile adhesives, or compliant underlayers are incorporated to stop delamination or splitting throughout thermal transients.
Designers need to additionally think about side defense, as ceramic tiles are prone to chipping at exposed corners; options include diagonal sides, metal shadows, or overlapping ceramic tile configurations.
Proper setup guarantees lengthy service life and makes best use of the safety function of the liner system.
3. Use Systems and Performance Assessment in Service Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear liners excel in settings controlled by three main wear mechanisms: two-body abrasion, three-body abrasion, and particle erosion.
In two-body abrasion, tough fragments or surface areas straight gouge the liner surface area, a common incident in chutes, hoppers, and conveyor transitions.
Three-body abrasion involves loosened fragments caught between the lining and moving product, leading to rolling and damaging action that gradually gets rid of material.
Erosive wear happens when high-velocity fragments impinge on the surface area, especially in pneumatic sharing lines and cyclone separators.
Due to its high hardness and reduced crack durability, alumina is most reliable in low-impact, high-abrasion situations.
It executes remarkably well versus siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be reduced by 10– 50 times compared to light steel liners.
Nevertheless, in applications involving repeated high-energy influence, such as primary crusher chambers, crossbreed systems incorporating alumina floor tiles with elastomeric backings or metal shields are usually employed to soak up shock and prevent crack.
3.2 Field Screening, Life Process Evaluation, and Failing Mode Assessment
Performance examination of alumina wear linings includes both research laboratory testing and field surveillance.
Standardized tests such as the ASTM G65 completely dry sand rubber wheel abrasion test provide comparative wear indices, while customized slurry erosion gears mimic site-specific problems.
In industrial setups, put on price is generally gauged in mm/year or g/kWh, with service life forecasts based upon preliminary thickness and observed deterioration.
Failing modes include surface polishing, micro-cracking, spalling at sides, and full ceramic tile dislodgement as a result of glue deterioration or mechanical overload.
Source evaluation frequently exposes setup errors, improper quality option, or unanticipated influence loads as key factors to premature failure.
Life process price analysis constantly shows that in spite of higher initial prices, alumina linings offer superior complete price of ownership as a result of extended substitute intervals, decreased downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear liners are deployed throughout a broad range of commercial sectors where product deterioration positions operational and economic obstacles.
In mining and mineral handling, they shield transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries including quartz, hematite, and other hard minerals.
In nuclear power plant, alumina ceramic tiles line coal pulverizer ducts, boiler ash hoppers, and electrostatic precipitator parts subjected to fly ash disintegration.
Cement producers use alumina liners in raw mills, kiln inlet areas, and clinker conveyors to combat the highly abrasive nature of cementitious materials.
The steel market uses them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal loads is important.
Also in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give long lasting defense versus chemically hostile and coarse materials.
4.2 Arising Trends: Composite Systems, Smart Liners, and Sustainability
Present research focuses on improving the strength and performance of alumina wear systems with composite design.
Alumina-zirconia (Al Two O FOUR-ZrO TWO) compounds leverage change strengthening from zirconia to enhance fracture resistance, while alumina-titanium carbide (Al ₂ O TWO-TiC) qualities provide enhanced performance in high-temperature sliding wear.
An additional technology entails embedding sensors within or beneath ceramic linings to keep track of wear progression, temperature, and influence regularity– allowing anticipating upkeep and electronic double assimilation.
From a sustainability point of view, the prolonged service life of alumina liners reduces product intake and waste generation, straightening with circular economic climate principles in industrial operations.
Recycling of invested ceramic linings right into refractory aggregates or building materials is likewise being explored to lessen environmental footprint.
To conclude, alumina ceramic wear linings stand for a keystone of modern industrial wear security modern technology.
Their outstanding firmness, thermal stability, and chemical inertness, integrated with fully grown production and setup methods, make them indispensable in combating product degradation throughout heavy markets.
As material scientific research developments and electronic monitoring becomes a lot more incorporated, the next generation of wise, durable alumina-based systems will certainly better enhance operational performance and sustainability in abrasive environments.
