1. Intro to Oil Immersed Transformers
In the detailed internet of our modern electric grid, transformers play an indispensable function, silently stepping voltage backwards and forwards to make sure electrical power can be sent efficiently over fars away and distributed securely to our homes and sectors. Among the various kinds available, the oil submersed transformer stands as a testimony to tested reliability and toughness. For decades, these workhorses have created the foundation of power systems worldwide.
An oil submersed transformer is a kind of electric transformer that makes use of a specialized shielding oil as both a coolant and a shielding medium. This design is mainly made use of for tool to high-power applications, making it a cornerstone of electrical infrastructure. This guide dives deep right into the world of oil immersed power transformers and oil immersed distribution transformers, exploring their innovation, applications, and their developing role in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a secured storage tank loaded with insulating oil. The primary function of the oil is twofold:
1. Insulation: The oil has high dielectric toughness, properly protecting the high-voltage windings from the transformer’s core and based container. This avoids short circuits and electric failures.
2. Cooling: As the transformer runs, the windings produce substantial warm as a result of I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s storage tank wall surfaces, and dissipates it into the bordering air. Bigger devices usually feature radiators or fins to boost the area for more reliable air conditioning.
This dual-purpose use of oil makes the oil submersed transformer exceptionally efficient and robust, capable of taking care of high loads and standing up to short-term overloads better than numerous dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they serve unique features within the power system network. Recognizing the difference is essential.
An oil submersed power transformer is a heavyweight, commonly used in transmission networks at creating stations and major substations. Their key function is to “step-up” the voltage generated at the power plant to exceptionally high levels (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for further distribution. They are characterized by their really high power scores (often surpassing 100 MVA), complicated construction, and on-load tap changers for voltage regulation.
An oil involved circulation transformer, on the other hand, performs the final step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the reduced voltages (e.g., 400/230 V) made use of by business and residential customers. You frequently find them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power ratings (typically up to 2,500 kVA), and are designed for optimal performance at reduced, extra continuous loads.

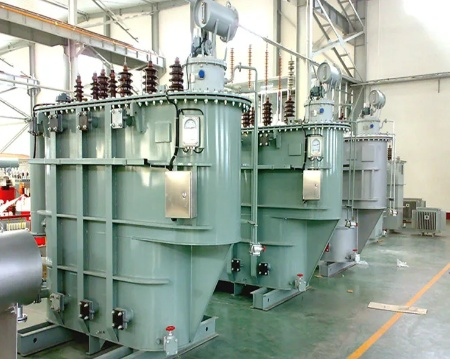

(Oil immersed power transformer)
2. Secret Benefits of Oil Submersed Transformers
The enduring appeal of the oil submersed transformer is not unexpected. It uses a collection of engaging benefits that make it the favored choice for several demanding applications.
2.1 Superior Air Conditioning and Overload Capability
The premium thermal capability of oil contrasted to air permits an oil submersed power transformer to handle and dissipate warm a lot more efficiently. This converts to a greater overload capability. Throughout periods of optimal electricity need, an oil immersed transformer can manage momentary overloads without suffering damages, an essential feature for maintaining grid stability. The oil’s circulation guarantees also warmth distribution, preventing localized locations that can deteriorate insulation with time.
2.2 Boosted Insulation and Long Service Life
The mix of high-quality mineral oil and meticulously fertilized paper insulation creates a dielectric system of exceptional stamina. This durable insulation system shields the transformer from voltage rises and transients, contributing to an operational life expectancy that can extend to 30-40 years or more with appropriate upkeep. The sealed tank additionally secures the interior parts from moisture, dirt, and other atmospheric pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically one of the most cost-effective option. The products made use of– mineral oil, steel storage tank, and copper/aluminum windings– use a beneficial balance of performance and cost. The high performance of these transformers, particularly at their rated load, results in lower power losses over their life time, bring about substantial expense savings for utility firms and huge commercial customers.
3. Hot Subjects and Future Trends
The globe of oil submersed transformers is not static. It is continually developing to meet brand-new difficulties and integrate with contemporary innovations.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and security problems are driving a significant shift far from standard mineral oil. The marketplace is quickly taking on oil immersed transformers loaded with biodegradable esters (synthetic or natural). These oils supply a higher fire point (making them K-class fireproof), are less toxic, and are readily eco-friendly, significantly reducing the environmental influence in case of a leak. This pattern is making oil immersed circulation transformers much safer for setup in city locations and ecologically sensitive areas.
3.2 Assimilation with Smart Grids and IoT
The modern-day oil immersed power transformer is coming to be a smart node in the wise grid. Sensing units are being integrated to keep track of crucial parameters in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting mistake gases produced within the oil to forecast incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Load and Power Quality Monitoring.
This data, transferred via IoT (Net of Things) platforms, allows predictive upkeep, avoids unintended failures, and optimizes transformer usage and lifespan.
3.3 Sustaining the Renewable Energy Shift
The global promote renewables is developing brand-new demand for oil submersed transformers. Massive solar ranches and wind power setups call for durable oil immersed power transformers to step up the generated voltage to transmission degrees. In addition, the recurring nature of renewables areas better anxiety on grid components, and the tried and tested integrity and overload capacity of oil submersed transformers make them ideal for this vital role.
4. Option and Maintenance Ideal Practices
Selecting the right transformer and preserving it effectively is essential to a trusted power system.
4.1 Just how to Pick the Right Oil Immersed Transformer
Selecting between an oil immersed power transformer and an oil immersed distribution transformer depends on the application. Secret factors to consider consist of:
1. Voltage Level and kVA Rating: Match the transformer’s specifications to your system’s needs.
2. Application: Transmission substation, industrial plant, or industrial distribution.
3. Area: Indoor vs. exterior, ecological conditions, and fire security regulations (which may affect the option of protecting oil).
4. Performance Specifications: Follow regional performance standards like DOE (U.S.A.) or EU CoC (Europe).
5. Budget plan: Consider both the preliminary capital expense and the complete expense of possession, including losses.

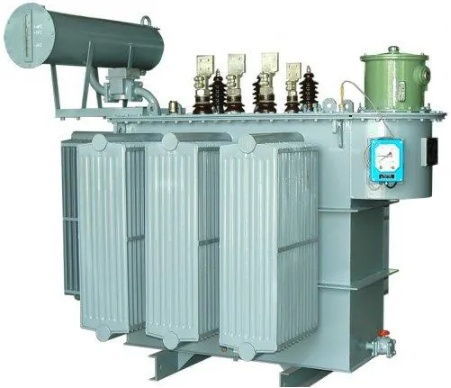

(Oil immersed distribution transformer)
4.2 Important Upkeep for Long Life
Positive maintenance is important for any kind of oil immersed transformer. A detailed program must include:
1. Normal Oil Sampling and Testing: Regular DGA and testing of dielectric toughness and dampness material are the most effective means to examine the health of the transformer.
2. Bushing and Insulation Assessment: Aesthetic look for fractures, contamination, or leakages.
3. Faucet Changer Upkeep: Routine assessment and maintenance of on-load or off-load tap changers.
4. Keep it Clean and Dry: Making certain the container exterior, radiators, and breathers are tidy and useful.
The oil immersed transformer, in its duties as both a high-capacity oil submersed power transformer and a common oil immersed circulation transformer, continues to be an irreplaceable component of our international power framework. Its tested style, combined with continuous technologies in insulating liquids and electronic tracking, guarantees it will certainly continue to be a reputable, effective, and intelligent service for powering our world for decades ahead. As we build the grids of the future, integrating even more renewables and electronic intelligence, the robust and versatile oil immersed transformer will most certainly go to the heart of it.
