Every part in a train system should function well. This keeps the system risk-free and efficient. Railway casting parts are extremely vital. They offer assistance, attach points, and conduct signals. Their high quality influences how stable the railway network is. When you get these components for South Africa, South America, or Russia, you need to find excellent manufacturers. To be successful, you require to recognize the regional technological policies. Below are 5 crucial high quality requirements you should constantly follow.
1. Product Structure & Mechanical Residences: The Structure of Quality
The efficiency of cast iron relies on its particular chemical make-up and casting process, and should satisfy the global or regional criteria of the target market. A trustworthy railway spreading components producer will give complete material traceability.
1.1 Structure Specifications: Should adhere to requirements such as International Specifications (ISO), European Specification (EN), Russian GOST criteria, or those commonly utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The material of damaging elements like phosphorus and sulfur need to be strictly controlled.
1.2 Mechanical Features: Concentrate on tensile stamina, yield toughness, solidity, and elongation. For ductile iron, refer to requirements such as ISO 1083, EN 1563, or GOST 28394. Procurement should call for vendors to provide product certificates and mechanical test records that adhere to the target audience’s needs.

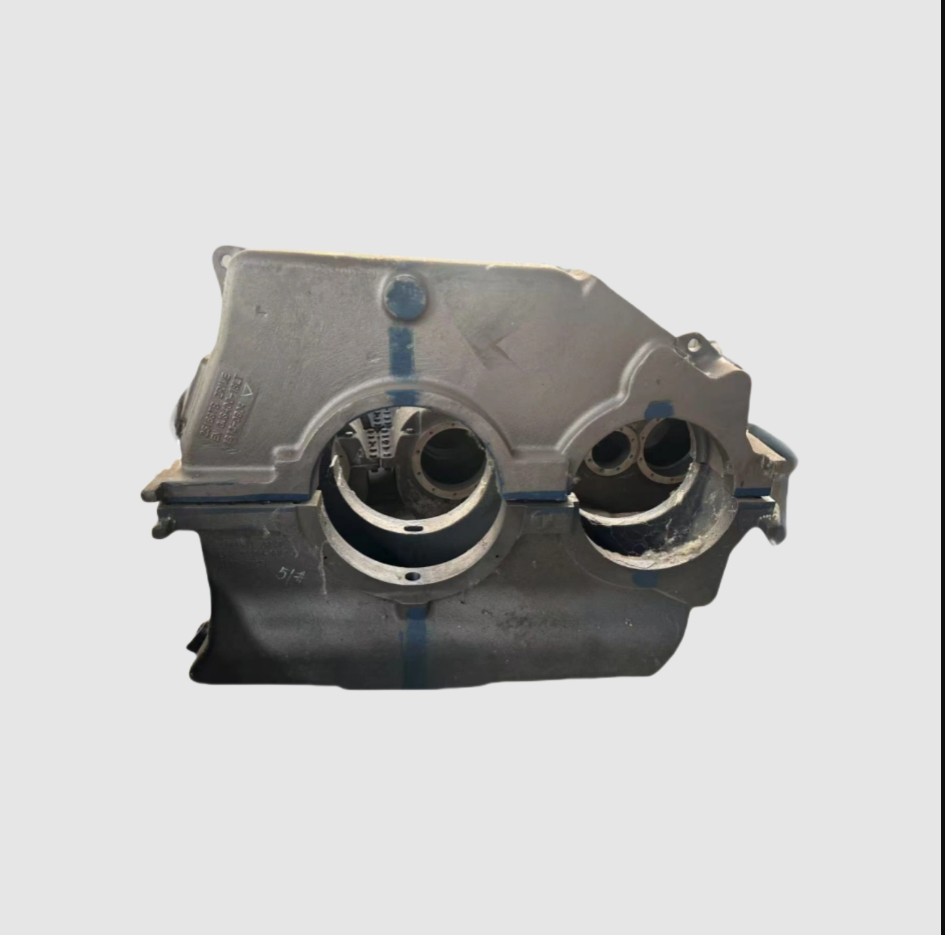

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Resistance Control: Making Certain a “Perfect Fit”
Train projects worldwide have stringent requirements for dimensional interchangeability; any inconsistency can influence system integration. Precision is a mark of premium train casting suppliers.
2.1 Important Measurements: All user interface dimensions and mounting opening settings for all train casting parts should be 100% inspected.
2.2 Tolerance Criteria: Need to stick to worldwide identified standards like ISO 2768, or details tolerance demands explicitly set with the client. For the Russian and CIS markets, special focus has to be paid to complying with relevant tolerance requirements in GOST 30893.
3. Limitations on Casting Issues: Eliminating Interior Hidden Dangers
The approval standards for casting problems have to be clearly specified in contracts and based on internationally or regionally acknowledged specs. Leading train casting components maker procedures utilize extensive non-destructive screening.
3.1 Surface Defects: Requirements like ISO 8062 can be referenced for assessing spreading surface area quality. Splits, chilly shuts, and other problems influencing serviceability are not allowed.
3.2 Inner Flaws: For crucial load-bearing train casting parts, non-destructive screening (e.g., ultrasonic, radiographic) need to be executed according to requirements like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance levels for flaws.
4. Metallographic Structure & Internal High Quality
The tiny framework of the material is the key basis for judging whether its internal high quality satisfies the requirement. This is a vital check for any type of expert train spreading components supplier.
4.1 Ductile Iron: The assessment of nodularization price must comply with criteria such as ISO 945-1 or GOST 3443 to guarantee its mechanical homes satisfy the requirements for usage under complicated working conditions.
4.2 Graphite Morphology & Matrix Structure: The metallographic assessment report is a crucial document for validating the stability of the manufacturing procedure and must comply with the relevant worldwide or local criteria.

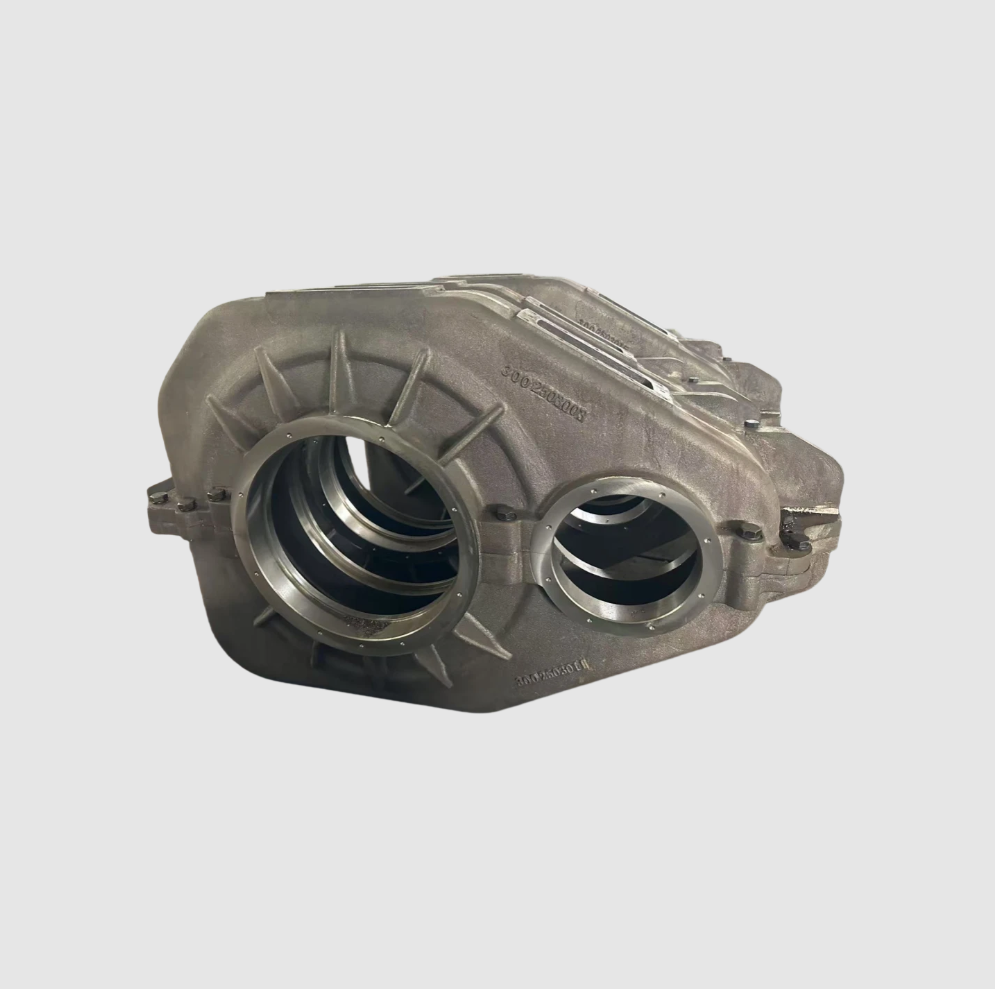

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Quality: Withstanding Harsh Environments
Provided South Africa’s seaside high salinity, South America’s tropical jungle moisture, and Russia’s severe cold and de-icing salts, anti-corrosion treatment for train spreading parts is essential.
5.1 Treatment Procedures: Specify the sort of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy coating, and so on, and specify key indications like finishing density, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Have to focus on details demands of the target market, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Standard) standards. An international train spreading producers will certainly be familiar with these varied needs.
