1. Material Foundations and Synergistic Layout
1.1 Innate Features of Component Phases

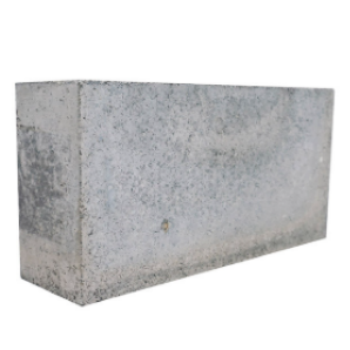

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide ceramics renowned for their phenomenal efficiency in high-temperature, destructive, and mechanically requiring settings.
Silicon nitride shows superior crack durability, thermal shock resistance, and creep stability because of its one-of-a-kind microstructure made up of extended β-Si five N four grains that enable fracture deflection and bridging mechanisms.
It maintains stamina up to 1400 ° C and has a fairly low thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal tensions throughout rapid temperature changes.
On the other hand, silicon carbide uses remarkable hardness, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it perfect for unpleasant and radiative warmth dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) likewise confers excellent electric insulation and radiation tolerance, beneficial in nuclear and semiconductor contexts.
When integrated right into a composite, these materials exhibit corresponding actions: Si six N four boosts strength and damage resistance, while SiC enhances thermal administration and wear resistance.
The resulting hybrid ceramic achieves an equilibrium unattainable by either phase alone, creating a high-performance structural product customized for severe solution conditions.
1.2 Composite Style and Microstructural Design
The layout of Si ₃ N ₄– SiC composites involves exact control over stage circulation, grain morphology, and interfacial bonding to maximize synergistic effects.
Generally, SiC is introduced as fine particle support (ranging from submicron to 1 µm) within a Si two N ₄ matrix, although functionally graded or layered designs are likewise checked out for specialized applications.
Throughout sintering– typically through gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC fragments influence the nucleation and development kinetics of β-Si four N ₄ grains, commonly promoting finer and even more uniformly oriented microstructures.
This refinement improves mechanical homogeneity and reduces problem size, contributing to improved stamina and dependability.
Interfacial compatibility between both stages is crucial; since both are covalent ceramics with comparable crystallographic symmetry and thermal development habits, they develop systematic or semi-coherent limits that resist debonding under tons.
Additives such as yttria (Y ₂ O SIX) and alumina (Al two O ₃) are made use of as sintering help to promote liquid-phase densification of Si five N ₄ without jeopardizing the security of SiC.
However, excessive additional phases can degrade high-temperature performance, so composition and processing should be maximized to minimize glazed grain limit films.
2. Processing Techniques and Densification Challenges

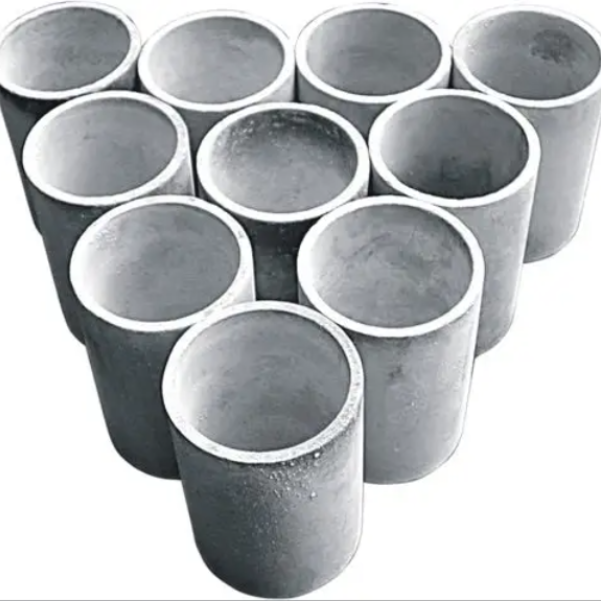

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
Top Quality Si Six N FOUR– SiC composites begin with uniform mixing of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic dispersion in organic or liquid media.
Attaining consistent dispersion is critical to stop agglomeration of SiC, which can serve as stress concentrators and decrease fracture toughness.
Binders and dispersants are added to maintain suspensions for forming methods such as slip casting, tape casting, or injection molding, relying on the desired part geometry.
Environment-friendly bodies are then meticulously dried out and debound to get rid of organics before sintering, a procedure calling for regulated heating prices to prevent splitting or deforming.
For near-net-shape manufacturing, additive strategies like binder jetting or stereolithography are emerging, allowing complicated geometries previously unreachable with standard ceramic processing.
These techniques need tailored feedstocks with optimized rheology and eco-friendly strength, often involving polymer-derived ceramics or photosensitive resins filled with composite powders.
2.2 Sintering Systems and Stage Security
Densification of Si Four N ₄– SiC composites is challenging because of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at useful temperatures.
Liquid-phase sintering using rare-earth or alkaline planet oxides (e.g., Y TWO O FIVE, MgO) decreases the eutectic temperature level and improves mass transport through a short-term silicate thaw.
Under gas pressure (usually 1– 10 MPa N TWO), this thaw facilitates rearrangement, solution-precipitation, and last densification while reducing decay of Si four N FOUR.
The existence of SiC affects thickness and wettability of the liquid stage, possibly altering grain growth anisotropy and last texture.
Post-sintering heat therapies might be applied to crystallize recurring amorphous stages at grain limits, boosting high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently used to confirm phase pureness, lack of undesirable additional stages (e.g., Si ₂ N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Load
3.1 Stamina, Toughness, and Tiredness Resistance
Si ₃ N ₄– SiC composites show premium mechanical performance compared to monolithic porcelains, with flexural toughness surpassing 800 MPa and crack strength values reaching 7– 9 MPa · m ¹/ ².
The enhancing impact of SiC bits hinders dislocation movement and split breeding, while the elongated Si six N four grains remain to provide toughening through pull-out and linking devices.
This dual-toughening strategy leads to a product very resistant to effect, thermal biking, and mechanical tiredness– vital for turning components and architectural elements in aerospace and power systems.
Creep resistance stays outstanding as much as 1300 ° C, attributed to the security of the covalent network and lessened grain boundary sliding when amorphous stages are reduced.
Firmness values normally vary from 16 to 19 Grade point average, offering exceptional wear and disintegration resistance in abrasive environments such as sand-laden circulations or sliding contacts.
3.2 Thermal Monitoring and Environmental Durability
The enhancement of SiC substantially boosts the thermal conductivity of the composite, often increasing that of pure Si ₃ N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This enhanced warm transfer capability enables a lot more reliable thermal administration in elements exposed to extreme local home heating, such as combustion linings or plasma-facing components.
The composite maintains dimensional stability under high thermal slopes, standing up to spallation and fracturing because of matched thermal expansion and high thermal shock criterion (R-value).
Oxidation resistance is one more key benefit; SiC develops a protective silica (SiO TWO) layer upon direct exposure to oxygen at raised temperatures, which even more compresses and secures surface area issues.
This passive layer protects both SiC and Si Two N ₄ (which additionally oxidizes to SiO two and N TWO), ensuring long-lasting toughness in air, heavy steam, or burning ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Equipment
Si Three N ₄– SiC composites are progressively released in next-generation gas generators, where they allow higher running temperature levels, improved gas effectiveness, and decreased air conditioning needs.
Elements such as generator blades, combustor linings, and nozzle guide vanes benefit from the material’s capability to stand up to thermal cycling and mechanical loading without significant destruction.
In atomic power plants, particularly high-temperature gas-cooled activators (HTGRs), these compounds work as fuel cladding or structural assistances as a result of their neutron irradiation tolerance and fission item retention capability.
In industrial setups, they are used in liquified steel handling, kiln furnishings, and wear-resistant nozzles and bearings, where conventional metals would stop working prematurely.
Their light-weight nature (thickness ~ 3.2 g/cm ³) additionally makes them attractive for aerospace propulsion and hypersonic car components based on aerothermal heating.
4.2 Advanced Production and Multifunctional Assimilation
Arising research study focuses on creating functionally rated Si five N ₄– SiC structures, where make-up differs spatially to maximize thermal, mechanical, or electromagnetic buildings across a solitary part.
Hybrid systems integrating CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si Three N FOUR) push the boundaries of damages tolerance and strain-to-failure.
Additive manufacturing of these composites enables topology-optimized heat exchangers, microreactors, and regenerative air conditioning channels with inner latticework frameworks unattainable through machining.
Additionally, their fundamental dielectric residential properties and thermal stability make them candidates for radar-transparent radomes and antenna windows in high-speed systems.
As needs expand for products that execute dependably under extreme thermomechanical lots, Si three N FOUR– SiC composites stand for an essential improvement in ceramic engineering, combining effectiveness with capability in a solitary, lasting platform.
Finally, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the staminas of two innovative porcelains to create a hybrid system efficient in growing in one of the most serious operational settings.
Their proceeded advancement will play a central role in advancing clean power, aerospace, and industrial technologies in the 21st century.
