1. Material Basics and Structural Properties of Alumina Ceramics
1.1 Composition, Crystallography, and Stage Stability

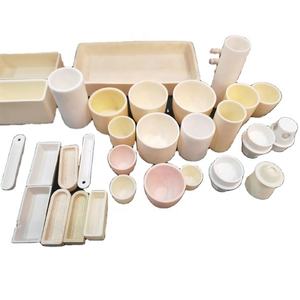

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels produced mainly from aluminum oxide (Al two O THREE), among the most extensively made use of innovative ceramics as a result of its extraordinary mix of thermal, mechanical, and chemical stability.
The dominant crystalline phase in these crucibles is alpha-alumina (α-Al two O FIVE), which comes from the diamond framework– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This dense atomic packaging results in strong ionic and covalent bonding, conferring high melting point (2072 ° C), superb hardness (9 on the Mohs scale), and resistance to sneak and contortion at raised temperatures.
While pure alumina is suitable for many applications, trace dopants such as magnesium oxide (MgO) are commonly included during sintering to inhibit grain development and boost microstructural harmony, thereby improving mechanical strength and thermal shock resistance.
The stage purity of α-Al ₂ O three is important; transitional alumina phases (e.g., γ, δ, θ) that form at reduced temperature levels are metastable and undergo volume modifications upon conversion to alpha stage, potentially bring about fracturing or failing under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Fabrication
The performance of an alumina crucible is greatly influenced by its microstructure, which is established during powder handling, forming, and sintering stages.
High-purity alumina powders (typically 99.5% to 99.99% Al Two O ₃) are shaped right into crucible forms utilizing methods such as uniaxial pushing, isostatic pressing, or slip casting, followed by sintering at temperatures between 1500 ° C and 1700 ° C.
During sintering, diffusion mechanisms drive particle coalescence, decreasing porosity and boosting density– preferably attaining > 99% academic thickness to decrease leaks in the structure and chemical infiltration.
Fine-grained microstructures enhance mechanical toughness and resistance to thermal tension, while controlled porosity (in some specific grades) can boost thermal shock resistance by dissipating pressure power.
Surface area surface is additionally crucial: a smooth interior surface reduces nucleation websites for undesirable reactions and helps with simple elimination of solidified materials after processing.
Crucible geometry– including wall surface thickness, curvature, and base design– is enhanced to stabilize warm transfer performance, architectural stability, and resistance to thermal slopes during fast home heating or cooling.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Habits
Alumina crucibles are regularly used in settings going beyond 1600 ° C, making them important in high-temperature materials research, steel refining, and crystal growth processes.
They display low thermal conductivity (~ 30 W/m · K), which, while restricting warmth transfer rates, also supplies a degree of thermal insulation and assists preserve temperature level gradients needed for directional solidification or zone melting.
A vital difficulty is thermal shock resistance– the ability to endure abrupt temperature adjustments without splitting.
Although alumina has a relatively low coefficient of thermal development (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it vulnerable to crack when subjected to high thermal gradients, particularly during quick heating or quenching.
To alleviate this, customers are recommended to comply with regulated ramping procedures, preheat crucibles gradually, and stay clear of direct exposure to open flames or cool surfaces.
Advanced grades integrate zirconia (ZrO TWO) strengthening or graded make-ups to enhance split resistance with systems such as phase change strengthening or residual compressive stress and anxiety generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
One of the defining benefits of alumina crucibles is their chemical inertness toward a wide range of liquified steels, oxides, and salts.
They are highly resistant to basic slags, molten glasses, and numerous metal alloys, including iron, nickel, cobalt, and their oxides, that makes them appropriate for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
Nonetheless, they are not widely inert: alumina reacts with highly acidic changes such as phosphoric acid or boron trioxide at high temperatures, and it can be corroded by molten antacid like salt hydroxide or potassium carbonate.
Especially crucial is their interaction with aluminum metal and aluminum-rich alloys, which can reduce Al ₂ O six by means of the response: 2Al + Al ₂ O SIX → 3Al ₂ O (suboxide), leading to pitting and ultimate failing.
Likewise, titanium, zirconium, and rare-earth steels display high reactivity with alumina, forming aluminides or complex oxides that endanger crucible integrity and infect the melt.
For such applications, alternate crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are chosen.
3. Applications in Scientific Study and Industrial Processing
3.1 Function in Products Synthesis and Crystal Development
Alumina crucibles are main to numerous high-temperature synthesis courses, consisting of solid-state reactions, flux growth, and thaw handling of useful ceramics and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, manufacturing phosphors, or preparing forerunner materials for lithium-ion battery cathodes.
For crystal growth strategies such as the Czochralski or Bridgman methods, alumina crucibles are used to include molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes certain minimal contamination of the growing crystal, while their dimensional security sustains reproducible development problems over extended periods.
In change development, where solitary crystals are expanded from a high-temperature solvent, alumina crucibles need to resist dissolution by the change medium– frequently borates or molybdates– needing cautious option of crucible quality and processing specifications.
3.2 Usage in Analytical Chemistry and Industrial Melting Operations
In logical labs, alumina crucibles are basic equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where precise mass dimensions are made under regulated environments and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing atmospheres make them ideal for such accuracy measurements.
In commercial setups, alumina crucibles are employed in induction and resistance heating systems for melting precious metals, alloying, and casting procedures, particularly in fashion jewelry, dental, and aerospace element production.
They are additionally used in the production of technical ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and ensure uniform home heating.
4. Limitations, Taking Care Of Practices, and Future Material Enhancements
4.1 Operational Restrictions and Best Practices for Long Life
In spite of their toughness, alumina crucibles have distinct functional limits that have to be respected to ensure security and performance.
Thermal shock remains the most common cause of failing; consequently, gradual heating and cooling down cycles are important, particularly when transitioning through the 400– 600 ° C variety where residual stress and anxieties can build up.
Mechanical damages from messing up, thermal biking, or call with tough materials can launch microcracks that propagate under stress.
Cleaning should be executed meticulously– avoiding thermal quenching or rough approaches– and made use of crucibles should be inspected for signs of spalling, discoloration, or deformation before reuse.
Cross-contamination is another worry: crucibles used for reactive or hazardous products ought to not be repurposed for high-purity synthesis without comprehensive cleansing or need to be thrown out.
4.2 Arising Fads in Compound and Coated Alumina Systems
To prolong the capacities of typical alumina crucibles, scientists are creating composite and functionally rated products.
Instances consist of alumina-zirconia (Al two O TWO-ZrO ₂) composites that boost durability and thermal shock resistance, or alumina-silicon carbide (Al ₂ O SIX-SiC) versions that boost thermal conductivity for more consistent heating.
Surface area finishes with rare-earth oxides (e.g., yttria or scandia) are being explored to create a diffusion barrier against responsive metals, thus broadening the range of compatible melts.
In addition, additive production of alumina elements is emerging, enabling custom crucible geometries with interior channels for temperature level surveillance or gas flow, opening brand-new opportunities in process control and reactor design.
Finally, alumina crucibles remain a keystone of high-temperature modern technology, valued for their integrity, pureness, and adaptability throughout clinical and industrial domains.
Their proceeded advancement through microstructural design and crossbreed material design ensures that they will certainly continue to be essential tools in the innovation of materials science, energy innovations, and progressed production.
