1. Product Basics and Crystal Chemistry
1.1 Structure and Polymorphic Framework

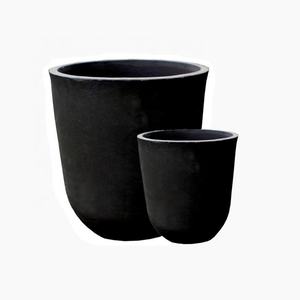

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its extraordinary firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks varying in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technologically appropriate.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and excellent resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC lacks a native glazed phase, adding to its security in oxidizing and corrosive ambiences as much as 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, relying on polytype) likewise grants it with semiconductor residential properties, making it possible for twin usage in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Methods
Pure SiC is exceptionally hard to compress due to its covalent bonding and low self-diffusion coefficients, requiring making use of sintering help or sophisticated handling methods.
Reaction-bonded SiC (RB-SiC) is generated by infiltrating permeable carbon preforms with molten silicon, developing SiC in situ; this approach returns near-net-shape parts with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert ambience, accomplishing > 99% theoretical thickness and superior mechanical buildings.
Liquid-phase sintered SiC (LPS-SiC) uses oxide additives such as Al ₂ O ₃– Y TWO O TWO, forming a short-term fluid that boosts diffusion however might reduce high-temperature toughness as a result of grain-boundary phases.
Hot pushing and trigger plasma sintering (SPS) use fast, pressure-assisted densification with great microstructures, ideal for high-performance elements requiring marginal grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Toughness, Hardness, and Put On Resistance
Silicon carbide ceramics display Vickers solidity worths of 25– 30 Grade point average, second only to diamond and cubic boron nitride amongst design products.
Their flexural stamina commonly ranges from 300 to 600 MPa, with fracture toughness (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for ceramics yet boosted through microstructural design such as whisker or fiber reinforcement.
The mix of high hardness and flexible modulus (~ 410 GPa) makes SiC exceptionally resistant to unpleasant and erosive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden atmospheres.

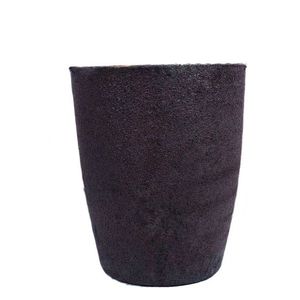

( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives numerous times much longer than standard options.
Its low density (~ 3.1 g/cm TWO) more adds to put on resistance by minimizing inertial pressures in high-speed rotating parts.
2.2 Thermal Conductivity and Security
One of SiC’s most distinguishing attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline forms, and up to 490 W/(m · K) for single-crystal 4H-SiC– surpassing most metals other than copper and light weight aluminum.
This home allows efficient heat dissipation in high-power electronic substrates, brake discs, and warmth exchanger parts.
Coupled with reduced thermal expansion, SiC exhibits outstanding thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths suggest durability to rapid temperature modifications.
For example, SiC crucibles can be heated from space temperature level to 1400 ° C in minutes without breaking, a task unattainable for alumina or zirconia in similar problems.
Moreover, SiC keeps strength as much as 1400 ° C in inert environments, making it perfect for furnace fixtures, kiln furniture, and aerospace parts exposed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Actions in Oxidizing and Decreasing Ambiences
At temperatures below 800 ° C, SiC is very steady in both oxidizing and reducing environments.
Above 800 ° C in air, a protective silica (SiO ₂) layer forms on the surface area using oxidation (SiC + 3/2 O ₂ → SiO TWO + CO), which passivates the product and reduces more deterioration.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, bring about accelerated recession– an essential consideration in turbine and combustion applications.
In lowering ambiences or inert gases, SiC continues to be secure approximately its decomposition temperature level (~ 2700 ° C), with no phase changes or strength loss.
This security makes it suitable for molten steel handling, such as aluminum or zinc crucibles, where it withstands wetting and chemical strike far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid combinations (e.g., HF– HNO ₃).
It shows superb resistance to alkalis up to 800 ° C, though long term exposure to thaw NaOH or KOH can cause surface area etching through formation of soluble silicates.
In molten salt settings– such as those in concentrated solar power (CSP) or atomic power plants– SiC shows superior deterioration resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical process tools, including shutoffs, linings, and warm exchanger tubes taking care of aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Energy, Protection, and Production
Silicon carbide porcelains are important to numerous high-value industrial systems.
In the power market, they act as wear-resistant linings in coal gasifiers, components in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Defense applications include ballistic shield plates, where SiC’s high hardness-to-density ratio supplies remarkable defense versus high-velocity projectiles contrasted to alumina or boron carbide at reduced cost.
In manufacturing, SiC is used for precision bearings, semiconductor wafer taking care of components, and rough blasting nozzles due to its dimensional stability and pureness.
Its use in electrical lorry (EV) inverters as a semiconductor substrate is quickly growing, driven by effectiveness gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Continuous research study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile behavior, boosted toughness, and kept strength above 1200 ° C– ideal for jet engines and hypersonic automobile leading edges.
Additive production of SiC through binder jetting or stereolithography is progressing, enabling intricate geometries formerly unattainable through typical developing approaches.
From a sustainability point of view, SiC’s durability minimizes substitute regularity and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer cutting or grinding is being established with thermal and chemical recuperation procedures to reclaim high-purity SiC powder.
As sectors press toward higher effectiveness, electrification, and extreme-environment procedure, silicon carbide-based porcelains will certainly continue to be at the forefront of sophisticated products engineering, connecting the void between architectural resilience and practical flexibility.
