1. Material Scientific Research and Structural Residence
1.1 Crystal Framework and Chemical Stability

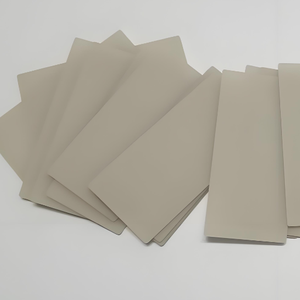

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a vast bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of aluminum and nitrogen atoms bound through strong covalent communications.
This durable atomic arrangement enhances AlN with outstanding thermal security, preserving architectural honesty approximately 2200 ° C in inert environments and resisting disintegration under severe thermal cycling.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and numerous reactive gases, making it suitable for extreme settings such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– developing only a slim safety Al ₂ O ₃ layer at surface area upon direct exposure to air– makes sure long-term integrity without significant degradation of bulk buildings.
Furthermore, AlN exhibits exceptional electric insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric stamina over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Electronic Characteristics
One of the most defining attribute of light weight aluminum nitride is its superior thermal conductivity, usually varying from 140 to 180 W/(m · K )for commercial-grade substratums– over five times higher than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and aluminum, combined with solid bonding and marginal point flaws, which allow efficient phonon transportation via the lattice.
Nonetheless, oxygen impurities are specifically destructive; even trace quantities (above 100 ppm) alternative to nitrogen sites, creating light weight aluminum vacancies and scattering phonons, thus significantly reducing thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or straight nitridation are essential to attain optimal warmth dissipation.
In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it useful in sensing units and acoustic wave devices, while its large bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.
2. Manufacture Processes and Production Challenges

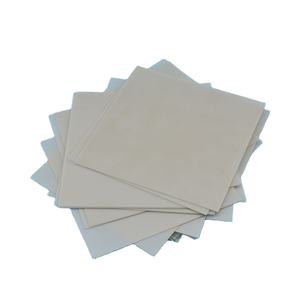

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Producing high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, generally achieved with reactions such as Al ₂ O FIVE + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or direct nitridation of light weight aluminum metal: 2Al + N TWO → 2AlN.
The resulting powder should be very carefully grated and doped with sintering aids like Y TWO O THREE, CaO, or unusual planet oxides to promote densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen ambience.
These ingredients create short-term liquid stages that boost grain boundary diffusion, allowing full densification (> 99% academic thickness) while reducing oxygen contamination.
Post-sintering annealing in carbon-rich settings can further lower oxygen web content by getting rid of intergranular oxides, thereby bring back peak thermal conductivity.
Accomplishing consistent microstructure with regulated grain size is vital to balance mechanical toughness, thermal efficiency, and manufacturability.
2.2 Substrate Shaping and Metallization
When sintered, AlN ceramics are precision-ground and washed to meet tight dimensional resistances required for electronic product packaging, typically down to micrometer-level monotony.
Through-hole drilling, laser cutting, and surface patterning allow combination into multilayer packages and hybrid circuits.
A crucial action in substrate fabrication is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are bonded to AlN surfaces at raised temperatures in a regulated ambience, developing a solid user interface ideal for high-current applications.
Alternative strategies like active metal brazing (AMB) use titanium-containing solders to enhance attachment and thermal tiredness resistance, particularly under repeated power biking.
Correct interfacial design makes sure low thermal resistance and high mechanical integrity in running gadgets.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Management in Power Electronics
AlN substrates master managing warm produced by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical automobiles, renewable energy inverters, and telecoms framework.
Efficient warmth removal prevents local hotspots, minimizes thermal tension, and extends tool life time by minimizing electromigration and delamination threats.
Contrasted to conventional Al ₂ O two substrates, AlN makes it possible for smaller bundle dimensions and greater power densities because of its superior thermal conductivity, allowing developers to push performance boundaries without jeopardizing integrity.
In LED lighting and laser diodes, where junction temperature directly affects performance and shade stability, AlN substrates substantially boost luminescent output and functional life-span.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical tension throughout thermal biking.
3.2 Electric and Mechanical Dependability
Beyond thermal performance, AlN uses low dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) across a wide frequency array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against dampness ingress, eliminating deterioration risks in humid atmospheres– a vital benefit over organic substratums.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and hardness (HV ≈ 1200), making certain longevity during handling, setting up, and area procedure.
These qualities collectively add to boosted system dependability, minimized failure prices, and lower overall cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Solutions
AlN ceramic substrates are currently standard in advanced power modules for commercial motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid vehicles.
In aerospace and protection, they sustain radar systems, digital war units, and satellite interactions, where performance under extreme conditions is non-negotiable.
Clinical imaging tools, consisting of X-ray generators and MRI systems, additionally gain from AlN’s radiation resistance and signal honesty.
As electrification trends increase across transport and energy markets, need for AlN substratums continues to grow, driven by the demand for small, efficient, and trustworthy power electronic devices.
4.2 Arising Integration and Sustainable Advancement
Future innovations focus on integrating AlN right into three-dimensional product packaging designs, ingrained passive elements, and heterogeneous integration systems combining Si, SiC, and GaN gadgets.
Study right into nanostructured AlN films and single-crystal substrates intends to additional boost thermal conductivity toward theoretical restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Efforts to reduce production expenses via scalable powder synthesis, additive production of complex ceramic frameworks, and recycling of scrap AlN are acquiring momentum to enhance sustainability.
In addition, modeling tools utilizing finite aspect evaluation (FEA) and machine learning are being employed to optimize substrate layout for certain thermal and electrical loads.
Finally, light weight aluminum nitride ceramic substratums represent a keystone modern technology in modern electronic devices, uniquely connecting the space in between electrical insulation and exceptional thermal conduction.
Their function in allowing high-efficiency, high-reliability power systems underscores their calculated relevance in the continuous evolution of electronic and power technologies.
