1. Structure and Architectural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

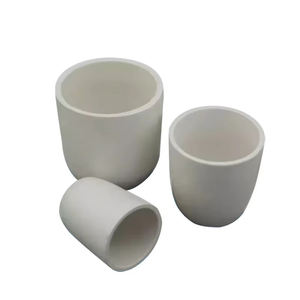

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, an artificial kind of silicon dioxide (SiO TWO) derived from the melting of all-natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under quick temperature modifications.
This disordered atomic framework prevents bosom along crystallographic aircrafts, making fused silica much less susceptible to splitting throughout thermal cycling contrasted to polycrystalline porcelains.
The material displays a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among engineering materials, enabling it to hold up against extreme thermal gradients without fracturing– an essential property in semiconductor and solar cell manufacturing.
Integrated silica additionally maintains exceptional chemical inertness versus the majority of acids, molten steels, and slags, although it can be slowly engraved by hydrofluoric acid and warm phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, depending on pureness and OH content) allows sustained procedure at elevated temperature levels required for crystal development and steel refining procedures.
1.2 Pureness Grading and Trace Element Control
The efficiency of quartz crucibles is highly based on chemical pureness, especially the focus of metal contaminations such as iron, sodium, potassium, aluminum, and titanium.
Even trace amounts (components per million level) of these contaminants can migrate right into molten silicon throughout crystal growth, deteriorating the electric properties of the resulting semiconductor product.
High-purity qualities made use of in electronic devices producing usually contain over 99.95% SiO TWO, with alkali metal oxides restricted to much less than 10 ppm and change steels below 1 ppm.
Contaminations originate from raw quartz feedstock or processing devices and are decreased through cautious choice of mineral sources and filtration strategies like acid leaching and flotation.
Additionally, the hydroxyl (OH) web content in integrated silica impacts its thermomechanical habits; high-OH kinds supply far better UV transmission but reduced thermal security, while low-OH variations are liked for high-temperature applications because of reduced bubble formation.

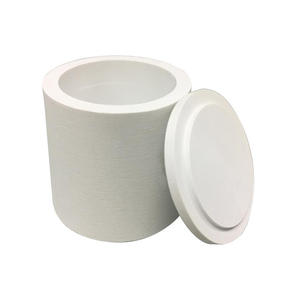

( Quartz Crucibles)
2. Production Refine and Microstructural Style
2.1 Electrofusion and Developing Techniques
Quartz crucibles are mainly created using electrofusion, a process in which high-purity quartz powder is fed right into a revolving graphite mold within an electric arc heating system.
An electric arc produced between carbon electrodes thaws the quartz fragments, which solidify layer by layer to form a seamless, thick crucible form.
This technique produces a fine-grained, homogeneous microstructure with very little bubbles and striae, vital for uniform heat circulation and mechanical stability.
Alternate methods such as plasma blend and fire blend are used for specialized applications calling for ultra-low contamination or specific wall density profiles.
After casting, the crucibles go through controlled air conditioning (annealing) to alleviate internal stress and anxieties and avoid spontaneous cracking during service.
Surface finishing, consisting of grinding and brightening, guarantees dimensional precision and minimizes nucleation sites for undesirable formation throughout use.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of modern quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer structure.
During manufacturing, the inner surface area is often treated to promote the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first home heating.
This cristobalite layer serves as a diffusion barrier, minimizing straight communication between molten silicon and the underlying merged silica, thus reducing oxygen and metal contamination.
Moreover, the presence of this crystalline phase enhances opacity, boosting infrared radiation absorption and promoting more consistent temperature level circulation within the thaw.
Crucible developers carefully stabilize the density and connection of this layer to prevent spalling or breaking as a result of volume changes throughout stage changes.
3. Useful Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, serving as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon held in a quartz crucible and gradually pulled up while rotating, allowing single-crystal ingots to form.
Although the crucible does not directly call the expanding crystal, interactions in between liquified silicon and SiO two wall surfaces bring about oxygen dissolution right into the melt, which can influence service provider life time and mechanical stamina in ended up wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles enable the regulated air conditioning of hundreds of kgs of molten silicon into block-shaped ingots.
Right here, layers such as silicon nitride (Si ₃ N ₄) are put on the inner surface to prevent adhesion and help with simple release of the solidified silicon block after cooling.
3.2 Destruction Systems and Life Span Limitations
Despite their effectiveness, quartz crucibles deteriorate throughout repeated high-temperature cycles as a result of several related devices.
Viscous circulation or deformation occurs at long term direct exposure above 1400 ° C, causing wall surface thinning and loss of geometric stability.
Re-crystallization of integrated silica into cristobalite creates interior anxieties due to quantity expansion, potentially creating fractures or spallation that contaminate the melt.
Chemical disintegration emerges from reduction reactions in between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing unstable silicon monoxide that leaves and deteriorates the crucible wall surface.
Bubble formation, driven by trapped gases or OH teams, better compromises architectural toughness and thermal conductivity.
These destruction paths restrict the number of reuse cycles and require specific procedure control to maximize crucible life-span and product yield.
4. Emerging Developments and Technical Adaptations
4.1 Coatings and Compound Modifications
To improve efficiency and sturdiness, progressed quartz crucibles incorporate practical layers and composite structures.
Silicon-based anti-sticking layers and drugged silica coverings boost release characteristics and lower oxygen outgassing during melting.
Some manufacturers integrate zirconia (ZrO TWO) fragments right into the crucible wall surface to boost mechanical stamina and resistance to devitrification.
Research is continuous into totally clear or gradient-structured crucibles made to maximize induction heat transfer in next-generation solar furnace designs.
4.2 Sustainability and Recycling Difficulties
With enhancing demand from the semiconductor and photovoltaic or pv sectors, sustainable use quartz crucibles has become a top priority.
Spent crucibles contaminated with silicon deposit are hard to recycle as a result of cross-contamination threats, bring about substantial waste generation.
Initiatives concentrate on creating recyclable crucible liners, enhanced cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for additional applications.
As gadget effectiveness require ever-higher material purity, the role of quartz crucibles will certainly remain to advance via advancement in materials science and procedure engineering.
In summary, quartz crucibles stand for an essential interface between raw materials and high-performance digital items.
Their special combination of pureness, thermal resilience, and architectural design enables the manufacture of silicon-based technologies that power modern-day computer and renewable resource systems.
