Introduction to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has actually gotten extensive recognition for its outstanding thermal conductivity, electrical insulation, and mechanical stability at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN shows a special combination of residential or commercial properties that make it the most suitable substratum material for applications in electronics, optoelectronics, power modules, and high-temperature atmospheres. Its capability to efficiently dissipate heat while maintaining excellent dielectric strength positions AlN as an exceptional alternative to typical ceramic substratums such as alumina and beryllium oxide. This post discovers the essential characteristics of aluminum nitride porcelains, explores fabrication strategies, and highlights its critical functions throughout sophisticated technological domains.

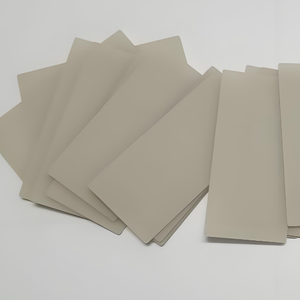

(Aluminum Nitride Ceramics)
Crystal Structure and Basic Properties
The performance of aluminum nitride as a substrate material is largely determined by its crystalline structure and intrinsic physical properties. AlN adopts a wurtzite-type lattice composed of alternating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– usually exceeding 180 W/(m · K), with some high-purity samples accomplishing over 320 W/(m · K). This worth significantly exceeds those of various other commonly made use of ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN possesses a wide bandgap of about 6.2 eV, resulting in excellent electric insulation residential or commercial properties also at high temperatures. It additionally demonstrates reduced thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimum match for semiconductor tool product packaging. Moreover, AlN displays high chemical inertness and resistance to molten metals, enhancing its viability for harsh atmospheres. These consolidated qualities establish AlN as a leading prospect for high-power digital substrates and thermally managed systems.
Fabrication and Sintering Technologies
Producing high-grade light weight aluminum nitride ceramics requires accurate powder synthesis and sintering methods to accomplish dense microstructures with marginal contaminations. Due to its covalent bonding nature, AlN does not easily compress with standard pressureless sintering. Consequently, sintering aids such as yttrium oxide (Y ₂ O THREE), calcium oxide (CaO), or uncommon planet aspects are usually included in advertise liquid-phase sintering and improve grain boundary diffusion.
The manufacture process normally starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that grated, shaped through approaches like tape spreading or shot molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pushing or stimulate plasma sintering (SPS) can even more enhance density and thermal conductivity by minimizing porosity and advertising grain placement. Advanced additive manufacturing methods are likewise being explored to make complex-shaped AlN components with customized thermal management capacities.
Application in Electronic Packaging and Power Modules
One of the most prominent uses aluminum nitride ceramics remains in digital packaging, especially for high-power devices such as insulated gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities enhance in contemporary electronic devices, efficient warm dissipation ends up being critical to make sure reliability and longevity. AlN substratums give an ideal remedy by integrating high thermal conductivity with superb electrical seclusion, preventing short circuits and thermal runaway problems.
Additionally, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substratums are increasingly employed in power module designs for electric lorries, renewable energy inverters, and industrial motor drives. Compared to typical alumina or silicon nitride substratums, AlN offers quicker warmth transfer and much better compatibility with silicon chip coefficients of thermal growth, consequently minimizing mechanical anxiety and boosting total system performance. Ongoing study intends to improve the bonding strength and metallization strategies on AlN surfaces to additional broaden its application scope.
Use in Optoelectronic and High-Temperature Gadget
Beyond electronic product packaging, aluminum nitride porcelains play a vital duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal stability. AlN is widely used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications calling for sanitation, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV array make it an excellent candidate for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s ability to work reliably at temperatures exceeding 1000 ° C makes it appropriate for usage in sensors, thermoelectric generators, and parts subjected to severe thermal loads. In aerospace and defense fields, AlN-based sensor bundles are employed in jet engine surveillance systems and high-temperature control units where conventional materials would fail. Continual innovations in thin-film deposition and epitaxial growth methods are broadening the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Reliability
A vital consideration for any type of substrate material is its long-term integrity under functional tensions. Aluminum nitride shows premium ecological stability contrasted to many various other ceramics. It is extremely resistant to corrosion from acids, alkalis, and molten metals, making certain sturdiness in aggressive chemical settings. Nonetheless, AlN is vulnerable to hydrolysis when revealed to wetness at elevated temperatures, which can degrade its surface area and reduce thermal efficiency.
To minimize this issue, protective finishes such as silicon nitride (Si ₃ N ₄), aluminum oxide, or polymer-based encapsulation layers are frequently applied to improve wetness resistance. In addition, careful sealing and product packaging strategies are implemented throughout gadget setting up to preserve the honesty of AlN substratums throughout their service life. As ecological guidelines end up being extra rigid, the safe nature of AlN additionally places it as a preferred choice to beryllium oxide, which presents wellness threats during processing and disposal.
Conclusion
Light weight aluminum nitride porcelains represent a class of advanced materials uniquely suited to address the expanding demands for efficient thermal management and electrical insulation in high-performance digital and optoelectronic systems. Their extraordinary thermal conductivity, chemical security, and compatibility with semiconductor innovations make them the most perfect substrate product for a wide range of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As fabrication innovations remain to progress and affordable manufacturing methods develop, the adoption of AlN substratums is expected to climb significantly, driving development in next-generation digital and photonic tools.
