Intro: Trick gadgets in power electronics
Silicon-controlled rectifiers (SCRs), also known as thyristors, are semiconductor power tools with a four-layer three-way junction structure (PNPN). Since its introduction in the 1950s, SCRs have been widely made use of in industrial automation, power systems, home device control and other areas as a result of their high hold up against voltage, huge current carrying capability, quick action and basic control. With the development of modern technology, SCRs have progressed right into many kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these kinds are not just shown in the framework and functioning principle, yet also determine their applicability in various application scenarios. This write-up will begin with a technical point of view, incorporated with certain specifications, to deeply examine the major distinctions and common uses these four SCRs.
Unidirectional SCR: Basic and stable application core
Unidirectional SCR is one of the most fundamental and common sort of thyristor. Its framework is a four-layer three-junction PNPN setup, including 3 electrodes: anode (A), cathode (K) and gate (G). It only permits present to move in one direction (from anode to cathode) and activates after eviction is triggered. Once switched on, even if the gate signal is eliminated, as long as the anode current is higher than the holding current (normally less than 100mA), the SCR continues to be on.

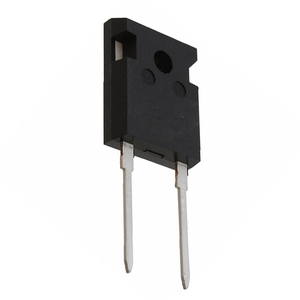

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and present tolerance, with a forward recurring peak voltage (V DRM) of as much as 6500V and a ranked on-state typical present (ITAV) of up to 5000A. For that reason, it is commonly made use of in DC motor control, industrial heating systems, uninterruptible power supply (UPS) rectification parts, power conditioning gadgets and various other celebrations that require continuous transmission and high power processing. Its benefits are simple structure, low cost and high dependability, and it is a core part of lots of conventional power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also known as TRIAC, can accomplish bidirectional transmission in both positive and unfavorable fifty percent cycles. This framework consists of 2 anti-parallel SCRs, which permit TRIAC to be activated and turned on at any moment in the AC cycle without altering the circuit connection approach. The balanced conduction voltage range of TRIAC is usually ± 400 ~ 800V, the optimum load current is about 100A, and the trigger current is much less than 50mA.
Due to the bidirectional transmission qualities of TRIAC, it is especially appropriate for air conditioner dimming and rate control in family appliances and consumer electronics. For example, tools such as lamp dimmers, follower controllers, and air conditioning system follower speed regulatory authorities all rely upon TRIAC to attain smooth power policy. Furthermore, TRIAC also has a lower driving power demand and appropriates for incorporated layout, so it has been extensively made use of in wise home systems and little devices. Although the power thickness and switching rate of TRIAC are not like those of new power gadgets, its low cost and hassle-free usage make it a vital gamer in the area of small and average power a/c control.
Gateway Turn-Off Thyristor (GTO): A high-performance agent of active control
Entrance Turn-Off Thyristor (GTO) is a high-performance power gadget established on the basis of conventional SCR. Unlike average SCR, which can only be shut off passively, GTO can be turned off proactively by using a negative pulse present to eviction, therefore achieving even more versatile control. This feature makes GTO do well in systems that require frequent start-stop or fast reaction.

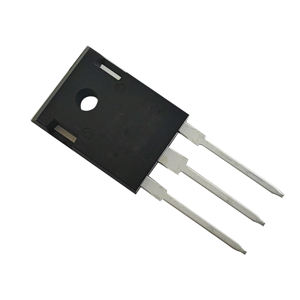

(Thyristor Rectifier)
The technological specifications of GTO reveal that it has exceptionally high power managing capacity: the turn-off gain is about 4 ~ 5, the optimum operating voltage can reach 6000V, and the maximum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency signs make GTO extensively made use of in high-power situations such as electrical engine grip systems, large inverters, industrial motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively complex and has high changing losses, its efficiency under high power and high vibrant response needs is still irreplaceable.
Light-controlled thyristor (LTT): A reliable option in the high-voltage seclusion environment
Light-controlled thyristor (LTT) makes use of optical signals instead of electrical signals to cause conduction, which is its biggest function that identifies it from other sorts of SCRs. The optical trigger wavelength of LTT is usually in between 850nm and 950nm, the response time is gauged in split seconds, and the insulation level can be as high as 100kV or above. This optoelectronic isolation device substantially enhances the system’s anti-electromagnetic interference capacity and safety.
LTT is primarily utilized in ultra-high voltage straight existing transmission (UHVDC), power system relay defense gadgets, electromagnetic compatibility security in clinical equipment, and army radar interaction systems etc, which have extremely high needs for safety and security and security. As an example, many converter terminals in China’s “West-to-East Power Transmission” task have embraced LTT-based converter valve modules to make certain stable operation under extremely high voltage conditions. Some progressed LTTs can additionally be combined with gateway control to accomplish bidirectional transmission or turn-off functions, further increasing their application variety and making them a suitable option for fixing high-voltage and high-current control troubles.
