1. Fundamental Structure and Material Structure
1.1 The Nanoscale Architecture of Aerogels

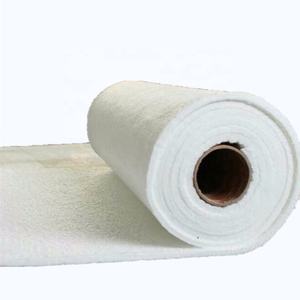

(Aerogel Blanket)
Aerogel blankets are sophisticated thermal insulation products built upon a distinct nanostructured framework, where a solid silica or polymer network spans an ultra-high porosity quantity– generally surpassing 90% air.
This structure stems from the sol-gel process, in which a fluid forerunner (typically tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a damp gel, adhered to by supercritical or ambient pressure drying out to eliminate the liquid without falling down the delicate porous network.
The resulting aerogel contains interconnected nanoparticles (3– 5 nm in diameter) forming pores on the range of 10– 50 nm, little sufficient to subdue air particle motion and therefore lessen conductive and convective warmth transfer.
This phenomenon, known as Knudsen diffusion, dramatically reduces the efficient thermal conductivity of the material, usually to values between 0.012 and 0.018 W/(m · K) at area temperature– amongst the lowest of any kind of strong insulator.
In spite of their low density (as low as 0.003 g/cm FOUR), pure aerogels are naturally fragile, necessitating reinforcement for sensible usage in flexible covering kind.
1.2 Support and Compound Style
To get over fragility, aerogel powders or monoliths are mechanically integrated right into coarse substratums such as glass fiber, polyester, or aramid felts, creating a composite “covering” that keeps outstanding insulation while acquiring mechanical toughness.
The strengthening matrix provides tensile stamina, flexibility, and taking care of toughness, allowing the product to be reduced, curved, and installed in complicated geometries without substantial efficiency loss.
Fiber material commonly varies from 5% to 20% by weight, meticulously balanced to decrease thermal bridging– where fibers conduct warmth throughout the covering– while making certain structural honesty.
Some progressed layouts incorporate hydrophobic surface area treatments (e.g., trimethylsilyl groups) to prevent moisture absorption, which can break down insulation efficiency and promote microbial development.
These alterations permit aerogel coverings to preserve secure thermal homes also in humid settings, increasing their applicability beyond controlled laboratory problems.
2. Manufacturing Processes and Scalability

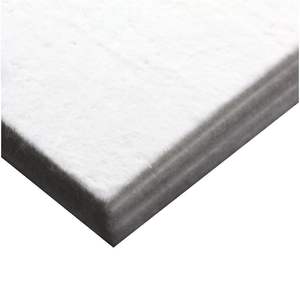

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The manufacturing of aerogel coverings starts with the development of a wet gel within a fibrous mat, either by impregnating the substrate with a liquid forerunner or by co-forming the gel and fiber network at the same time.
After gelation, the solvent must be removed under problems that prevent capillary anxiety from breaking down the nanopores; historically, this required supercritical CO ₂ drying, a costly and energy-intensive procedure.
Recent advancements have made it possible for ambient stress drying out through surface modification and solvent exchange, considerably reducing manufacturing expenses and allowing continuous roll-to-roll production.
In this scalable process, lengthy rolls of fiber floor covering are continuously coated with forerunner option, gelled, dried, and surface-treated, allowing high-volume outcome ideal for industrial applications.
This change has actually been essential in transitioning aerogel blankets from particular niche laboratory materials to commercially feasible products made use of in building, energy, and transport markets.
2.2 Quality Control and Performance Consistency
Guaranteeing uniform pore structure, regular density, and reputable thermal performance across huge manufacturing batches is important for real-world deployment.
Suppliers employ rigorous quality assurance steps, consisting of laser scanning for thickness variation, infrared thermography for thermal mapping, and gravimetric analysis for moisture resistance.
Batch-to-batch reproducibility is essential, especially in aerospace and oil & gas industries, where failing because of insulation breakdown can have serious consequences.
In addition, standardized screening according to ASTM C177 (heat circulation meter) or ISO 9288 makes certain precise coverage of thermal conductivity and makes it possible for fair contrast with standard insulators like mineral wool or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Throughout Temperature Varies
Aerogel coverings display exceptional thermal efficiency not just at ambient temperature levels yet also across severe ranges– from cryogenic conditions listed below -100 ° C to heats surpassing 600 ° C, relying on the base product and fiber type.
At cryogenic temperatures, conventional foams may break or lose efficiency, whereas aerogel blankets stay flexible and keep reduced thermal conductivity, making them optimal for LNG pipes and tank.
In high-temperature applications, such as commercial furnaces or exhaust systems, they supply reliable insulation with reduced density compared to bulkier choices, saving space and weight.
Their low emissivity and capability to mirror convected heat even more improve efficiency in glowing barrier setups.
This large operational envelope makes aerogel coverings distinctly versatile among thermal monitoring remedies.
3.2 Acoustic and Fireproof Characteristics
Beyond thermal insulation, aerogel coverings show noteworthy sound-dampening buildings because of their open, tortuous pore framework that dissipates acoustic power with thick losses.
They are significantly made use of in automotive and aerospace cabins to lower sound pollution without including considerable mass.
Additionally, most silica-based aerogel blankets are non-combustible, attaining Class A fire rankings, and do not release harmful fumes when exposed to fire– important for constructing security and public infrastructure.
Their smoke density is incredibly reduced, improving presence during emergency discharges.
4. Applications in Industry and Emerging Technologies
4.1 Power Effectiveness in Structure and Industrial Equipment
Aerogel blankets are transforming energy performance in architecture and industrial engineering by enabling thinner, higher-performance insulation layers.
In buildings, they are used in retrofitting historic structures where wall thickness can not be enhanced, or in high-performance façades and home windows to reduce thermal linking.
In oil and gas, they shield pipelines bring hot fluids or cryogenic LNG, decreasing energy loss and preventing condensation or ice formation.
Their light-weight nature likewise minimizes structural load, especially beneficial in overseas systems and mobile devices.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings secure spacecraft from extreme temperature variations throughout re-entry and guard delicate tools from thermal cycling precede.
NASA has used them in Mars vagabonds and astronaut fits for passive thermal guideline.
Automotive makers integrate aerogel insulation right into electric car battery packs to stop thermal runaway and boost security and performance.
Consumer products, including outdoor apparel, shoes, and camping equipment, now include aerogel cellular linings for remarkable heat without mass.
As manufacturing costs decrease and sustainability improves, aerogel coverings are poised to come to be traditional services in global efforts to reduce energy consumption and carbon exhausts.
In conclusion, aerogel coverings stand for a merging of nanotechnology and sensible design, supplying unparalleled thermal efficiency in a flexible, resilient format.
Their capacity to conserve energy, room, and weight while maintaining security and environmental compatibility placements them as crucial enablers of lasting innovation throughout varied markets.
