1. The Nanoscale Style and Product Science of Aerogels
1.1 Genesis and Fundamental Structure of Aerogel Products

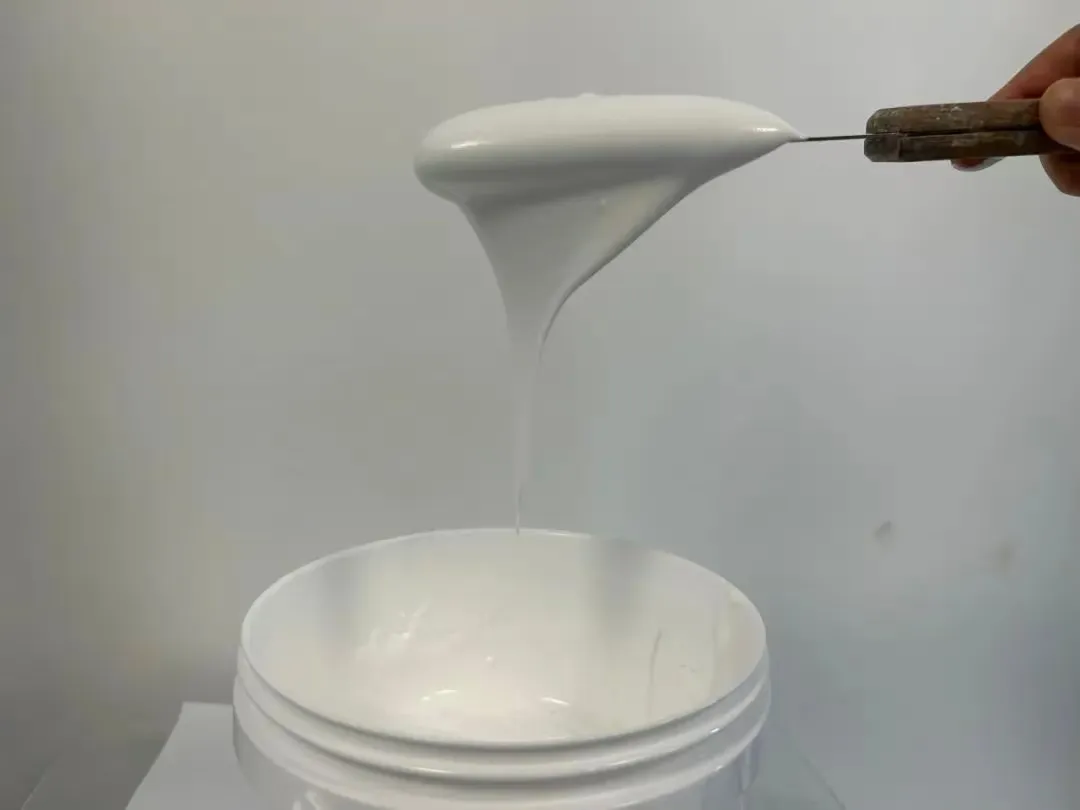

(Aerogel Insulation Coatings)
Aerogel insulation layers represent a transformative innovation in thermal administration modern technology, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, permeable materials derived from gels in which the fluid part is replaced with gas without falling down the solid network.
First established in the 1930s by Samuel Kistler, aerogels remained largely laboratory inquisitiveness for decades due to frailty and high manufacturing costs.
Nevertheless, recent developments in sol-gel chemistry and drying out methods have actually enabled the combination of aerogel bits right into versatile, sprayable, and brushable finish solutions, unlocking their possibility for widespread commercial application.
The core of aerogel’s phenomenal insulating ability depends on its nanoscale porous structure: generally composed of silica (SiO TWO), the material shows porosity exceeding 90%, with pore sizes predominantly in the 2– 50 nm variety– well listed below the mean free path of air molecules (~ 70 nm at ambient conditions).
This nanoconfinement drastically reduces gaseous thermal transmission, as air molecules can not successfully transfer kinetic power via accidents within such constrained spaces.
Simultaneously, the solid silica network is engineered to be highly tortuous and discontinuous, reducing conductive warmth transfer through the solid phase.
The result is a material with among the lowest thermal conductivities of any solid known– usually between 0.012 and 0.018 W/m · K at area temperature– surpassing conventional insulation materials like mineral woollen, polyurethane foam, or increased polystyrene.
1.2 Evolution from Monolithic Aerogels to Compound Coatings
Early aerogels were created as brittle, monolithic blocks, restricting their use to niche aerospace and clinical applications.
The change toward composite aerogel insulation finishes has actually been driven by the need for flexible, conformal, and scalable thermal obstacles that can be applied to complex geometries such as pipes, valves, and uneven equipment surface areas.
Modern aerogel coatings integrate finely milled aerogel granules (commonly 1– 10 µm in size) distributed within polymeric binders such as acrylics, silicones, or epoxies.

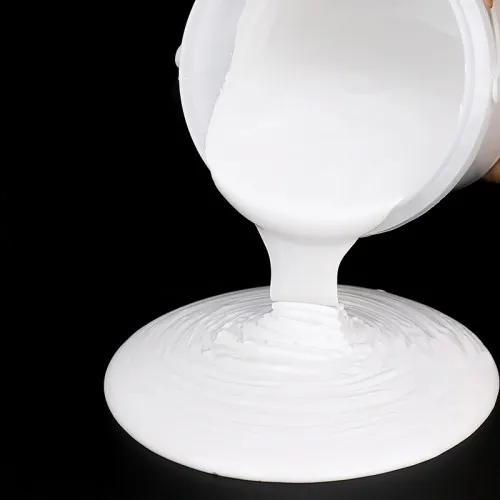

( Aerogel Insulation Coatings)
These hybrid formulations retain much of the inherent thermal efficiency of pure aerogels while getting mechanical effectiveness, adhesion, and weather resistance.
The binder stage, while a little boosting thermal conductivity, provides necessary communication and allows application by means of typical industrial approaches consisting of spraying, rolling, or dipping.
Most importantly, the volume fraction of aerogel fragments is enhanced to stabilize insulation performance with movie honesty– typically varying from 40% to 70% by quantity in high-performance formulas.
This composite approach preserves the Knudsen effect (the reductions of gas-phase transmission in nanopores) while enabling tunable residential or commercial properties such as versatility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Heat Transfer Reductions
2.1 Mechanisms of Thermal Insulation at the Nanoscale
Aerogel insulation layers accomplish their exceptional performance by all at once reducing all three settings of warm transfer: conduction, convection, and radiation.
Conductive warmth transfer is reduced through the combination of low solid-phase connectivity and the nanoporous framework that hinders gas particle activity.
Since the aerogel network contains exceptionally slim, interconnected silica strands (frequently simply a couple of nanometers in diameter), the path for phonon transportation (heat-carrying latticework vibrations) is extremely limited.
This structural layout efficiently decouples nearby areas of the finishing, decreasing thermal connecting.
Convective warmth transfer is naturally absent within the nanopores due to the inability of air to develop convection currents in such constrained spaces.
Also at macroscopic scales, appropriately used aerogel layers eliminate air gaps and convective loops that afflict traditional insulation systems, specifically in vertical or overhead installations.
Radiative heat transfer, which comes to be considerable at elevated temperatures (> 100 ° C), is reduced with the incorporation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These additives boost the coating’s opacity to infrared radiation, spreading and taking in thermal photons before they can pass through the layer density.
The synergy of these devices causes a material that offers comparable insulation efficiency at a portion of the density of traditional products– commonly achieving R-values (thermal resistance) several times greater per unit thickness.
2.2 Performance Throughout Temperature and Environmental Problems
One of the most compelling benefits of aerogel insulation layers is their consistent efficiency throughout a wide temperature level spectrum, commonly ranging from cryogenic temperature levels (-200 ° C) to over 600 ° C, relying on the binder system used.
At reduced temperatures, such as in LNG pipes or refrigeration systems, aerogel layers prevent condensation and lower warmth ingress extra efficiently than foam-based alternatives.
At high temperatures, specifically in industrial procedure devices, exhaust systems, or power generation centers, they safeguard underlying substratums from thermal destruction while lessening energy loss.
Unlike organic foams that might decay or char, silica-based aerogel finishings remain dimensionally stable and non-combustible, adding to easy fire defense approaches.
In addition, their low water absorption and hydrophobic surface therapies (typically attained using silane functionalization) protect against efficiency deterioration in damp or wet environments– a common failing mode for coarse insulation.
3. Solution Methods and Useful Integration in Coatings
3.1 Binder Option and Mechanical Residential Property Design
The choice of binder in aerogel insulation coatings is critical to stabilizing thermal performance with longevity and application versatility.
Silicone-based binders provide superb high-temperature stability and UV resistance, making them suitable for outside and industrial applications.
Acrylic binders provide good attachment to steels and concrete, along with simplicity of application and low VOC emissions, excellent for developing envelopes and heating and cooling systems.
Epoxy-modified formulations boost chemical resistance and mechanical toughness, useful in marine or corrosive settings.
Formulators likewise include rheology modifiers, dispersants, and cross-linking agents to guarantee consistent fragment distribution, protect against clearing up, and improve movie development.
Versatility is meticulously tuned to avoid breaking during thermal biking or substratum deformation, particularly on dynamic frameworks like growth joints or vibrating machinery.
3.2 Multifunctional Enhancements and Smart Finishing Prospective
Past thermal insulation, modern aerogel coverings are being engineered with added capabilities.
Some formulas consist of corrosion-inhibiting pigments or self-healing agents that expand the life-span of metal substrates.
Others integrate phase-change products (PCMs) within the matrix to supply thermal power storage, smoothing temperature variations in buildings or electronic enclosures.
Arising study discovers the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to enable in-situ monitoring of finish honesty or temperature level distribution– leading the way for “wise” thermal monitoring systems.
These multifunctional capabilities position aerogel coatings not merely as passive insulators yet as energetic parts in smart facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Fostering
4.1 Power Performance in Structure and Industrial Sectors
Aerogel insulation finishings are increasingly released in industrial buildings, refineries, and power plants to minimize power intake and carbon discharges.
Applied to vapor lines, central heating boilers, and heat exchangers, they substantially reduced heat loss, improving system efficiency and minimizing gas demand.
In retrofit circumstances, their thin account allows insulation to be included without major structural modifications, protecting room and lessening downtime.
In property and business construction, aerogel-enhanced paints and plasters are utilized on wall surfaces, roofings, and home windows to boost thermal comfort and minimize HVAC tons.
4.2 Particular Niche and High-Performance Applications
The aerospace, vehicle, and electronics markets utilize aerogel finishings for weight-sensitive and space-constrained thermal monitoring.
In electrical automobiles, they secure battery loads from thermal runaway and outside warmth sources.
In electronic devices, ultra-thin aerogel layers insulate high-power components and prevent hotspots.
Their use in cryogenic storage space, space environments, and deep-sea tools underscores their integrity in severe environments.
As producing scales and costs decline, aerogel insulation finishings are positioned to come to be a foundation of next-generation sustainable and resistant framework.
