1. Material Fundamentals and Structural Qualities of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

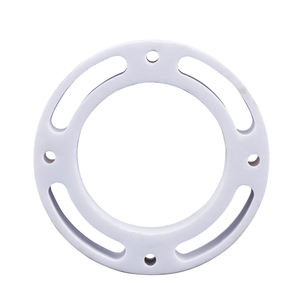

(Alumina Ceramic Substrates)
Alumina ceramic substratums, mainly composed of aluminum oxide (Al two O FOUR), act as the foundation of modern electronic product packaging due to their remarkable balance of electrical insulation, thermal stability, mechanical toughness, and manufacturability.
One of the most thermodynamically steady stage of alumina at high temperatures is corundum, or α-Al Two O ₃, which takes shape in a hexagonal close-packed oxygen lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites.
This dense atomic plan conveys high firmness (Mohs 9), outstanding wear resistance, and solid chemical inertness, making α-alumina suitable for rough operating environments.
Commercial substrates usually contain 90– 99.8% Al ₂ O ₃, with small enhancements of silica (SiO TWO), magnesia (MgO), or rare planet oxides used as sintering help to promote densification and control grain development throughout high-temperature processing.
Greater purity grades (e.g., 99.5% and above) show premium electric resistivity and thermal conductivity, while reduced purity variations (90– 96%) offer cost-efficient remedies for much less requiring applications.
1.2 Microstructure and Problem Design for Electronic Dependability
The efficiency of alumina substrates in digital systems is critically based on microstructural uniformity and defect minimization.
A fine, equiaxed grain structure– usually ranging from 1 to 10 micrometers– ensures mechanical stability and decreases the likelihood of crack propagation under thermal or mechanical anxiety.
Porosity, especially interconnected or surface-connected pores, need to be lessened as it weakens both mechanical stamina and dielectric performance.
Advanced processing strategies such as tape casting, isostatic pushing, and controlled sintering in air or controlled environments allow the manufacturing of substrates with near-theoretical density (> 99.5%) and surface roughness below 0.5 µm, essential for thin-film metallization and wire bonding.
Additionally, pollutant segregation at grain borders can lead to leakage currents or electrochemical movement under predisposition, necessitating rigorous control over basic material pureness and sintering problems to ensure long-lasting dependability in damp or high-voltage environments.
2. Manufacturing Processes and Substratum Fabrication Technologies

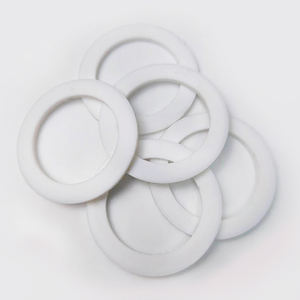

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Environment-friendly Body Handling
The production of alumina ceramic substratums begins with the preparation of a highly spread slurry including submicron Al two O four powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed via tape spreading– a continuous method where the suspension is spread over a moving provider movie using a precision medical professional blade to accomplish consistent density, commonly between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “environment-friendly tape” is versatile and can be punched, drilled, or laser-cut to create using holes for vertical interconnections.
Numerous layers may be laminated flooring to produce multilayer substrates for complex circuit combination, although most of industrial applications make use of single-layer arrangements because of set you back and thermal development factors to consider.
The environment-friendly tapes are after that meticulously debound to get rid of natural additives through managed thermal decay before final sintering.
2.2 Sintering and Metallization for Circuit Combination
Sintering is performed in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to accomplish complete densification.
The linear shrinkage during sintering– generally 15– 20%– must be specifically forecasted and compensated for in the style of eco-friendly tapes to make sure dimensional accuracy of the last substratum.
Following sintering, metallization is put on create conductive traces, pads, and vias.
2 primary techniques dominate: thick-film printing and thin-film deposition.
In thick-film modern technology, pastes including steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a reducing atmosphere to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or dissipation are utilized to down payment bond layers (e.g., titanium or chromium) complied with by copper or gold, making it possible for sub-micron patterning by means of photolithography.
Vias are full of conductive pastes and terminated to develop electric affiliations in between layers in multilayer designs.
3. Practical Features and Efficiency Metrics in Electronic Equipment
3.1 Thermal and Electric Behavior Under Operational Anxiety
Alumina substratums are prized for their desirable mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al ₂ O TWO), which enables effective warmth dissipation from power gadgets, and high volume resistivity (> 10 ¹⁴ Ω · cm), guaranteeing minimal leak current.
Their dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is stable over a broad temperature and regularity variety, making them suitable for high-frequency circuits up to a number of ghzs, although lower-κ materials like light weight aluminum nitride are chosen for mm-wave applications.
The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and specific product packaging alloys, minimizing thermo-mechanical anxiety during gadget operation and thermal cycling.
Nevertheless, the CTE mismatch with silicon remains a concern in flip-chip and direct die-attach arrangements, usually needing certified interposers or underfill materials to reduce fatigue failing.
3.2 Mechanical Effectiveness and Environmental Sturdiness
Mechanically, alumina substratums exhibit high flexural strength (300– 400 MPa) and outstanding dimensional stability under load, allowing their use in ruggedized electronic devices for aerospace, auto, and industrial control systems.
They are immune to resonance, shock, and creep at raised temperatures, keeping architectural stability as much as 1500 ° C in inert ambiences.
In humid environments, high-purity alumina shows very little dampness absorption and exceptional resistance to ion movement, making certain lasting reliability in outdoor and high-humidity applications.
Surface hardness also shields against mechanical damages during handling and assembly, although treatment needs to be required to stay clear of edge damaging due to fundamental brittleness.
4. Industrial Applications and Technological Influence Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Equipments
Alumina ceramic substrates are ubiquitous in power electronic modules, including shielded gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electric isolation while promoting warm transfer to warmth sinks.
In superhigh frequency (RF) and microwave circuits, they function as carrier platforms for crossbreed incorporated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks because of their secure dielectric buildings and low loss tangent.
In the auto sector, alumina substratums are used in engine control units (ECUs), sensor packages, and electrical automobile (EV) power converters, where they sustain high temperatures, thermal biking, and direct exposure to harsh liquids.
Their dependability under harsh conditions makes them essential for safety-critical systems such as anti-lock stopping (ABDOMINAL) and advanced chauffeur assistance systems (ADAS).
4.2 Medical Devices, Aerospace, and Emerging Micro-Electro-Mechanical Equipments
Beyond consumer and commercial electronic devices, alumina substrates are used in implantable clinical devices such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are vital.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite interaction components as a result of their radiation resistance and stability in vacuum atmospheres.
Moreover, alumina is increasingly utilized as a structural and protecting system in micro-electro-mechanical systems (MEMS), including stress sensors, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film handling are advantageous.
As digital systems continue to demand greater power densities, miniaturization, and reliability under extreme problems, alumina ceramic substratums remain a foundation product, linking the void in between performance, price, and manufacturability in sophisticated electronic packaging.
